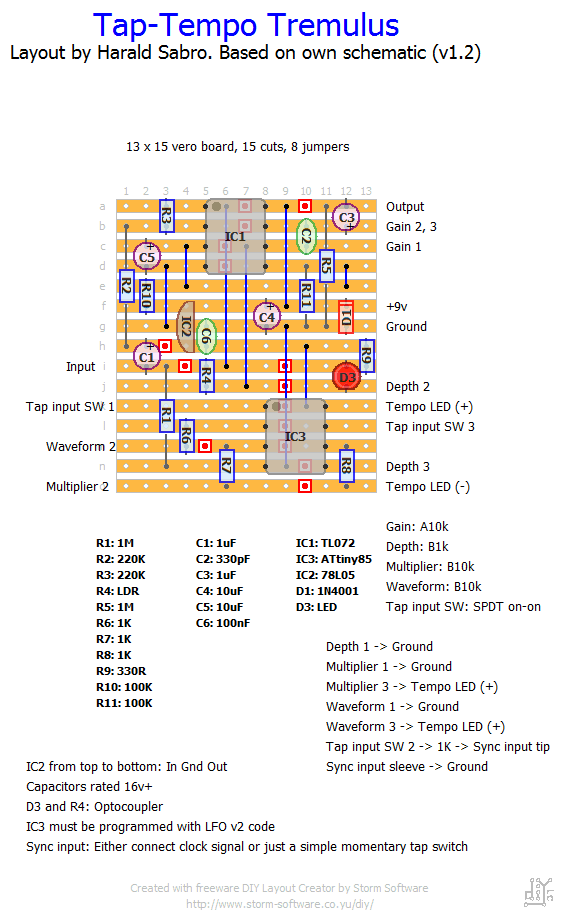

Update (10.07.2014): Minor changes to the schematic and vero layout to make this work with the tap-tempo clock project; tap input switch, series resistor and sync input.

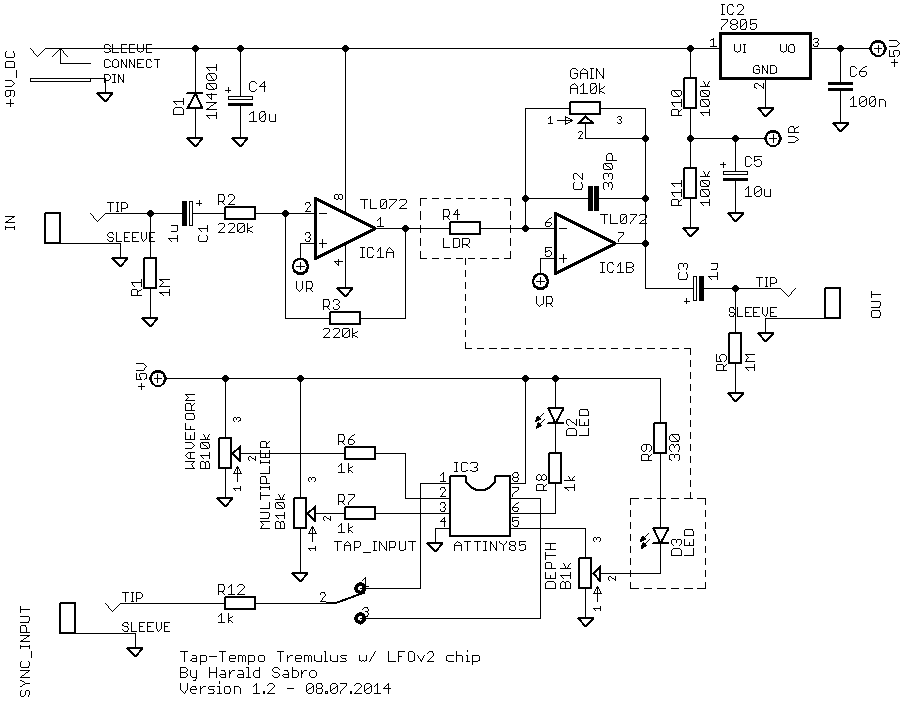

tap_tempo_tremulus_1_2TapTempoTremulus1_2


I wanted to try out a different tap-tempo tremolo circuit and compare, this one loosely based on the Tremulus Lune. And again, using the ATtiny85 LFO v2.

I’ve successfully breadboarded it so the schematic should be good. Layout to come soon.

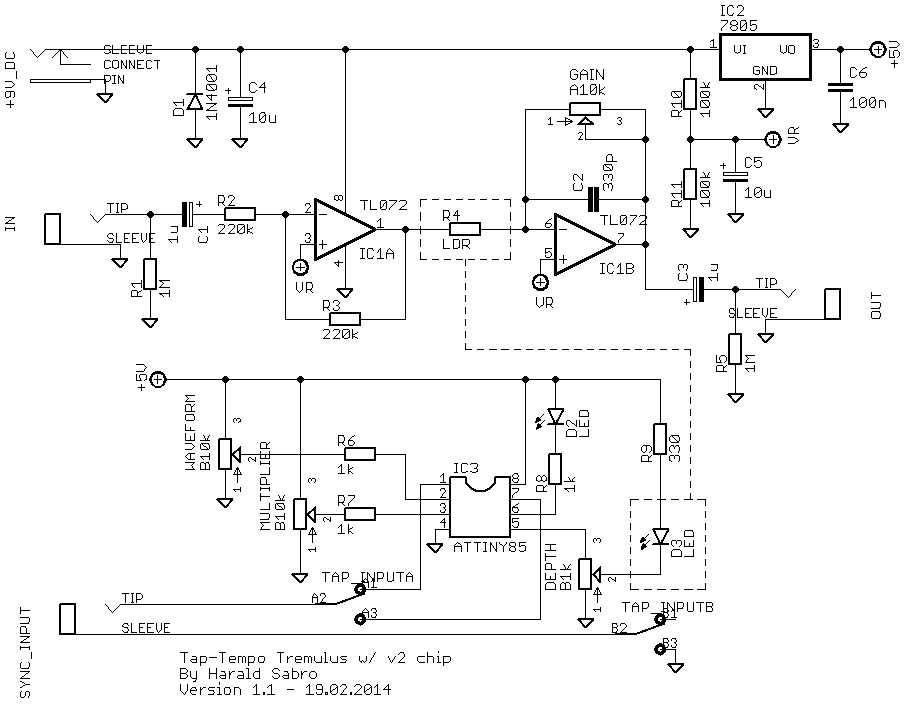

tap_tempo_tremulus_1_1TapTempoTremoloAlternateV1_1

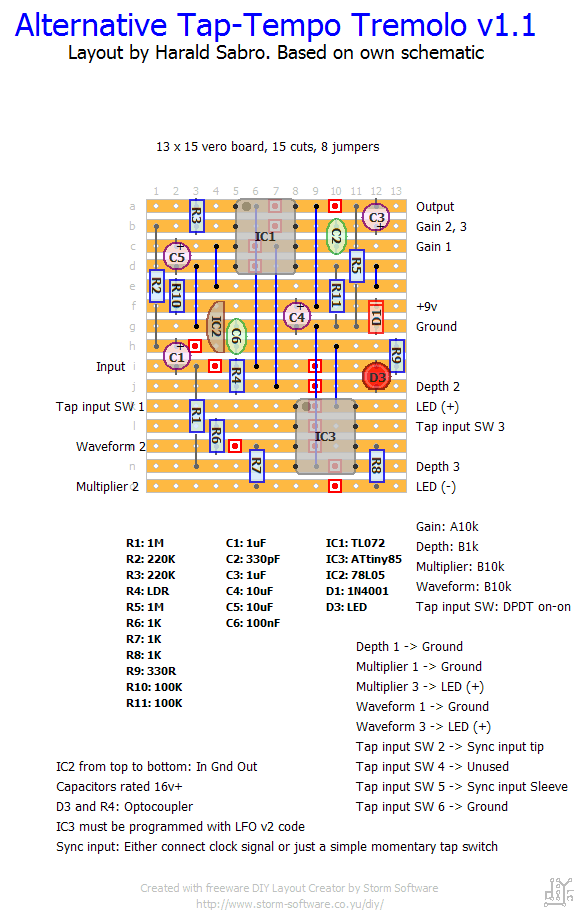

Update (19.02.2014): Reoriented the Depth pot in the schematic. And here’s a layout too. Enjoy 🙂

Related Posts

2 thoughts on “Tap-tempo Tremulus

  1. Hi Ron,
    Not possible today, but I am noticing several requests for this so will put it on my list.

  2. Hi Harald,
    thank you very much for your work!!
    I have a question about the Tap tempo tremolo. It’s possible to add a Speed knob to control the Speed with the Tap tempo switch but also with a knob?
    For me that’s important in some cases using a Tremolo live.
    Thanks!!
