Having completed the power supply I felt confident and decided I’d try a tube amplifier. Since this is my first attempt I’m sticking to something relatively easy, like a single ended 5 watt thing. I found a schematic for the Bad Cat Mini II amplifier on schematicheaven.com and also discovered a thread on freestompboxes.org where a couple of members had actually built this thing.

It took me a long time, but I managed to source all the parts eventually.

Bad Cat Mini II parts

This is very much a learning experience and gut shots of an actual Bad Cat Mini II amplifier helped me figure out approximately how to lay out the various parts in a practical manner. Turns out the chassis I ordered is a lot bigger than it had to be, but that’s OK. Would have been a lot worse the other way around.

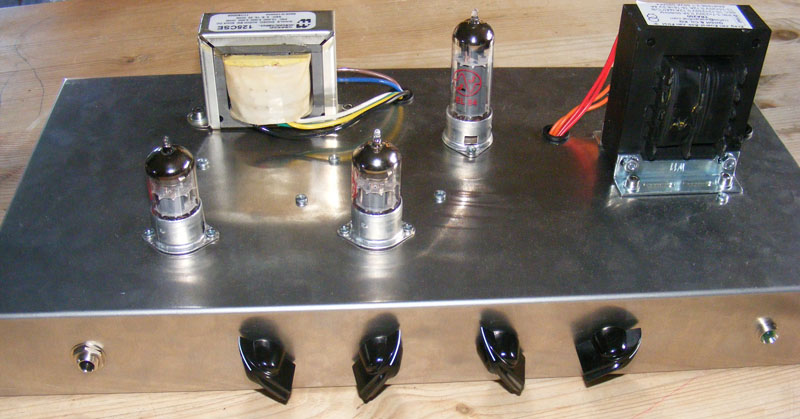

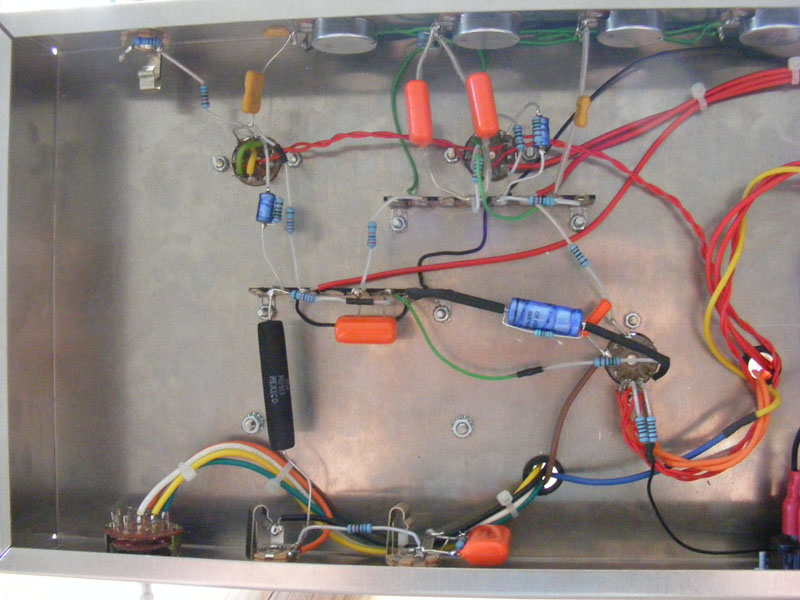

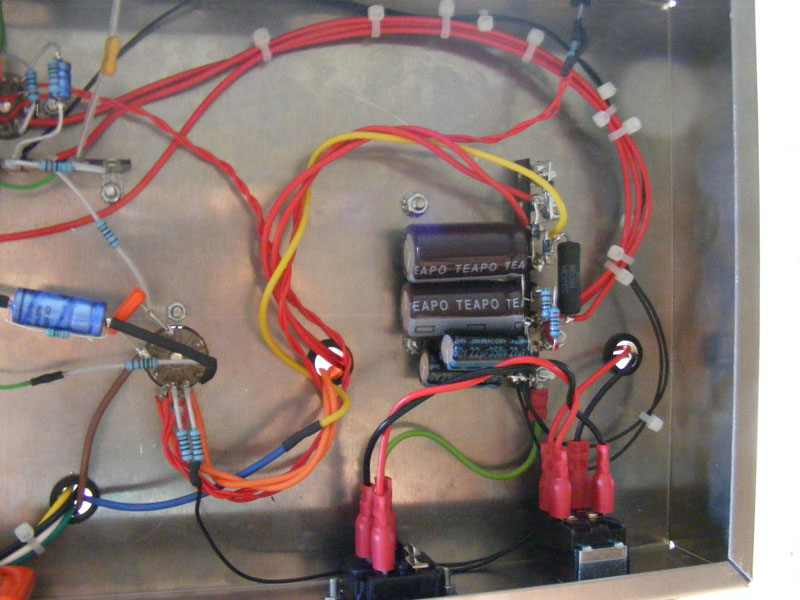

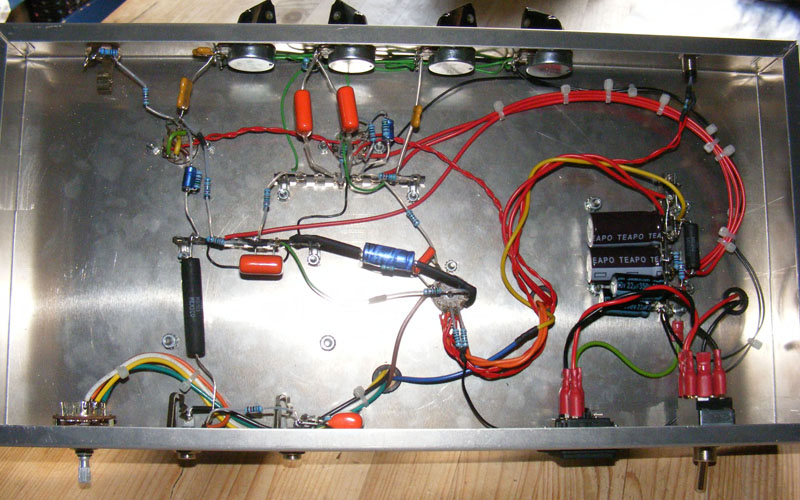

Bad Cat Mini II chassis buildBad Cat Mini II gut shot overviewBad Cat Mini II gut shot detail 1Bad Cat Mini II gut shot detail 2

I’ve spent some time reading up on amplifier specific issues and considerations. I tried to implement star grounding, but none of the switchcraft jacks I’ve used are isolated. Once I’ve got the speaker cabinet ready I’ll have to evaluate whether I need to isolate these to reduce hum. Gave the amp a test run with an old speaker I had lying around and it worked quite well on first attempt, albeit at a very low volume. After some investigation it turned out I had the filament wiring on the 12AX7’s slightly wrong, but having fixed this the amp now works like a wonder. Time to get started on the cabinet…

Update (27.10.2010): Here’s my parts list for this project.

—————————

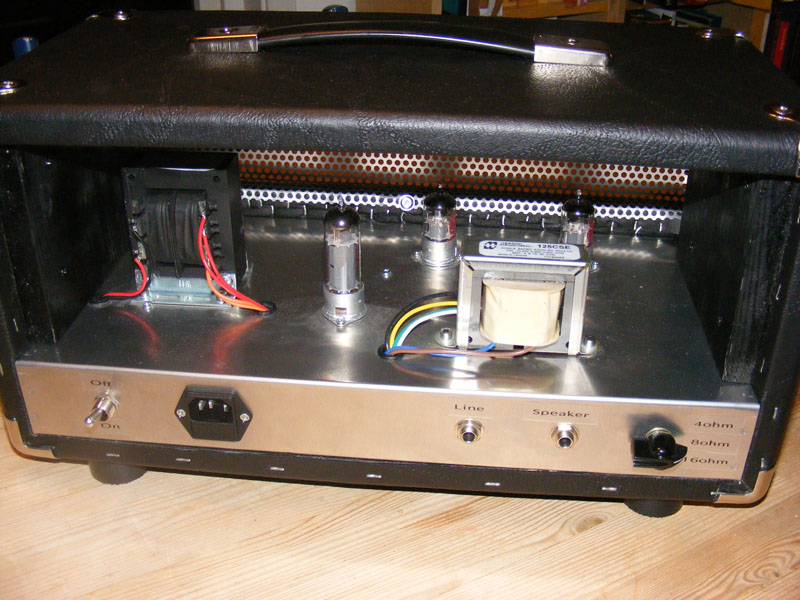

After many a month of sitting on a shelf my 5 watt Mini II clone finally received a proper house.

I’m quite happy with it, being my first attempt at an amp, but there’s lots of room for improvement. Building the housing turned out to be a lot more challenging than I first imagined, but this might come down to a complete lack of experience. I expect the next amp project to go a lot smoother in this regard.

In retrospect the housing should have extended a bit further backwards to help protect the power switch and speaker selector. Oh, and I might also place a board across the back to prevent my kid from touching anything back there.

Now I need to build a speaker cabinet…
