Request: Xotic AC/RC Booster

Two more layouts today. These are for the AC- and RC-Boosters. They’re quite similar, but do note that there are a few differences, both in trace cuts and also in components. Have fun 🙂

AC-Booster:

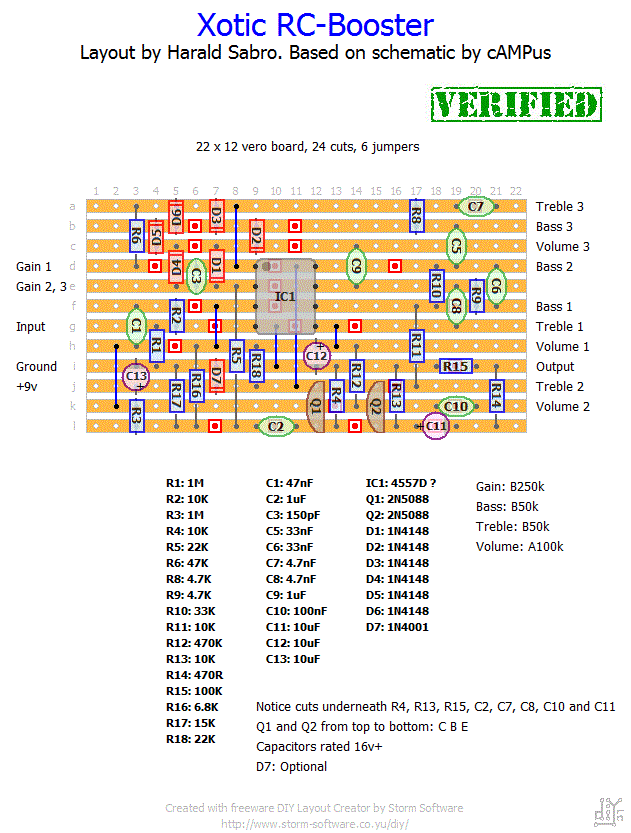

RC-Booster:

Update (15.11.2012): The RC-Booster is verified as working, thanks to Henning Reyers.

Update (22.11.2012): Thanks to Henning for verifying the AC-Booster as well 🙂
