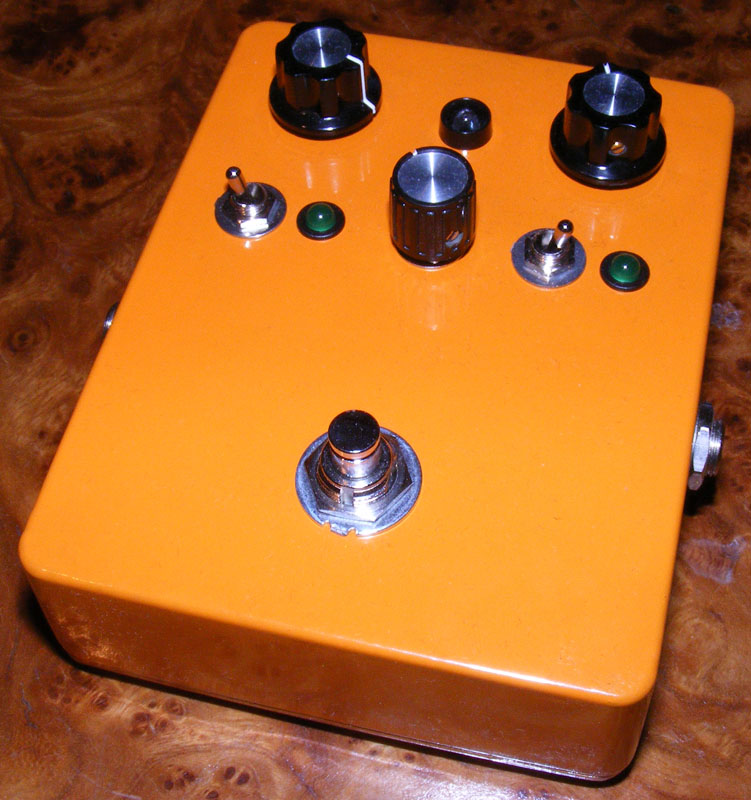

The stock Boss DS-1 is one of my favorite pedals, and I’d heard so much about this Keeley mod that supposedly improved it that I had to make me one. I actually made this effect a good while ago and have been very happy with it, but I recently gave it to a friend and consequently had to make a new one for myself (this time in color!). I chose to expose the clipping LEDs on the mod switches because I thought it’d look cooler.
Hello. I think there’s a 250pf missing?
That looks great, Taras!
I love this! Nice job!
You may enjoy seeing this: http://instagram.com/p/uH1we1Ezse/
Have you made others since?
It doesn’t have to be metal film really. Any regular film capacitor will probably do just fine.
I understand…and if i can’t find metal film ones which type should I use?
Yes, either non-polarized/bi-polarized electrolytics or regular (non-polarized) film caps.
The 1 uf condensers should be non polarised?I just bought the items and noticed that the 1uf capacitors have polarity.
Give it a try, but make sure you get the pinout right (I think the BC550C is opposite of the 2N5088).
Hi there.Could you tell me if there’s a problem if I put a BC550C instead of 2n5088?
Thanks man!
Hi Septi,
Depending on how/if you mount the switches you may very well be able to fit it in a 1590B, but it’ll be a squeeze. 1590BB will give you plenty of space.
Hi.Do you know if this vero would fit into a HAMMOND 1590B enclosure?Or to buy a 1590BB enclosure?
Hej Harald,
It worked immediately! Very nice pedal. The surface mounted leds are reacting like a dog with rabies.
Looks very cool: Thanks!
Bavo
